Compatible with RadioLink T8FB only

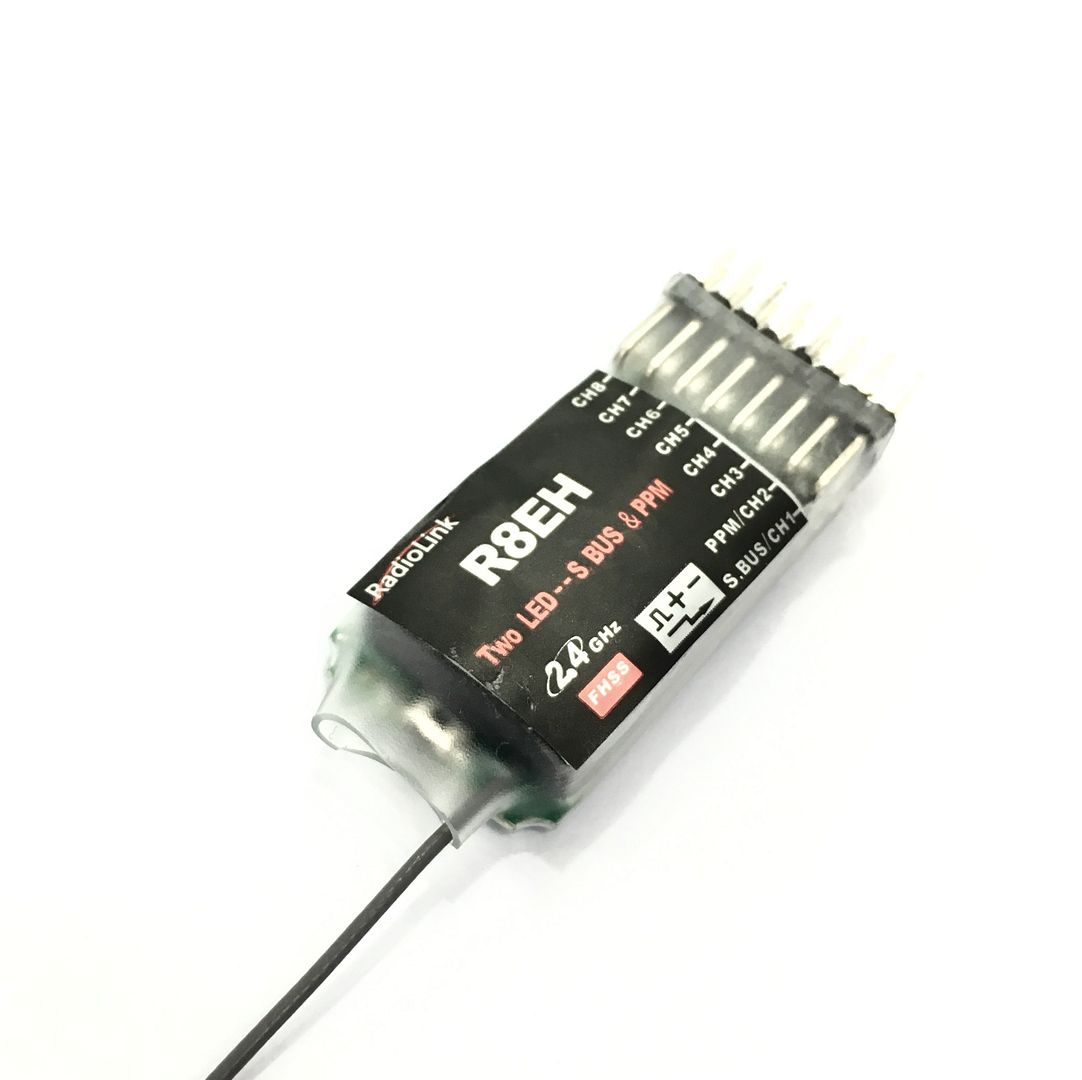

R8EH Receiver (2.4Ghz)
PPM / PWM / S.BUS
R8EH Receiver Spec and Features:
PWM / S.BUS / PPM compatible
: 19-25 mA(Voltage input: 5V)
: 48.5 x 21 x 11mm
How to swap between S.Bus/PPM and PWM mode?
1. Make sure the receiver already bound
2. Double tap the very small black button on the side of the receiver
(within 1 sec.), then the LED light will change color, Green is PWM
mode, Red is S.Bus (Port 1) or PPM (Port 2).
How to bind?
1. Please turn on your transmitter and select a memory slot
2. Power on the aircraft, then Press and Hold the very small black
button on the side of the receiver, until the LED goes flashing, then
release the button.
3. After a few seconds it will automatically bind with the transmitter,
it's that simple.
